Komori Lithrone 26
(All sizes in mm)
| Inkers |
Prod
Code |
Set Qty |
Core
Dia |
Roller Dia |
Rubber Length |
Total Length |
| A - Form Roller |
KO620 |
1 |
48.6 |
71 |
674 |
722 |
| B- Form Roller |
KO621 |
1 |
45 |
68 |
674 |
766 |
| C- Form Roller |
KO622 |
1 |
38.1 |
62 |
674 |
722 |
| D - Form Roller |
KO623 |
1 |
54 |
75 |
674 |
766 |
| E - Ductor |
KO624 |
1 |
38.1 |
60 |
674 |
740 |
| F - Distributor |
KO625 |
1 |
38.1 |
60 |
674 |
740 |
| G - Distributor |
KO626 |
2 |
45 |
65 |
674 |
766 |
| H - Distributor |
KO627 |
1 |
60 |
80 |
674 |
704 |
| I - Distributor |
KO628 |
1 |
60.5 |
82 |
674 |
766 |
| Komorimatic continuous dampening system |
|
|
|
|
|
|
| V - Water Form (Long) |
KO629 |
1 |
53 |
79 |
678 |
812 |
| W - Water Meter |
KO630 |
1 |
47 |
73 |
736 |
822 |
| Speciality rollers |
|
|
|
|
|
|
| A - Form Hickey Roller |
KO620H |
1 |
48.6 |
71 |
674 |
722 |
| V - Water Form (Short) |
KO634 |
1 |
53 |
79 |
678 |
766 |
| Optional rollers |
|
|
|
|
|
|
| B - Cocking Form Roller |
KO631 |
1 |
45 |
68 |
674 |
722 |
| D - Cocking Form Roller |
KO632 |
1 |
54 |
75 |
674 |
722 |
|
 |

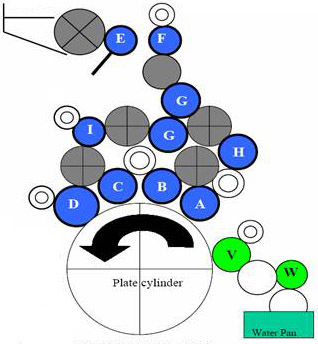

Roller
Configuration Diagram |
 |
 |
May use plate cocking rollers
Roller B - K0631
Roller D - KO632
|
|
 |
|
|
|
|
